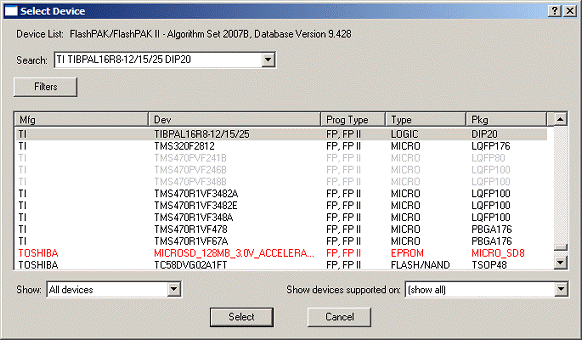

The Select Device dialog
Click the column headings to sort by that column; once for ascending, once again for descending. To sort devices by Mfg (manufacturer), Dev (device name), Prog Type (programmer type), Type (device type) or Pkg (package type), click on that heading.
To select a device, choose from these options:
Begin typing a device name in the Search field. The device list is populated by devices that match the text entered in the Search field.
Click the arrow to the right of the Search field to display recently-selected devices and choose one. Then click Select.
Click a device in the list box and then click Select.
Click to select a custom filter or to open the Edit Filters dialog.
To select which devices show in the device list, choose from these options:
All devices — Show all devices for the selected programmer type.
Only released devices (BLACK) — Show only released devices for the selected programmer type.
Only non-released devices (RED) — Show only beta devices. The Device Footnote displays the algorithm filename, release status (beta), and author.
Only uninstalled devices (GRAY) — Show only devices that are not available to this programmer but can be purchased in an update or downloaded from the Algorithm Update feature on the Data I/O Web site.
Why don't I see the "Show" button?
To select which devices show in the device list, choose from these options:
Click to select the highlighted device.
Click to close the Select Device dialog without saving your changes.
===
